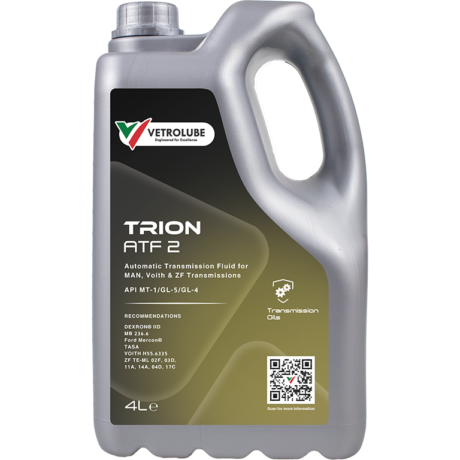

Automatic Transmission Fluid for MAN, Voith & ZF Transmissions
ATF fluid designed for automatic transmissions in heavy vehicles, cars, power steering, and hydraulic applications. It provides optimal performance and protection for a variety of systems, including those requiring Dexron®-II, Mercon®, and ZF and Voith transmission fluids.
Applications & Benefits
Oxidation Stability: Additives provide resistance to thermal stress and oxidation, protecting the gearbox and preventing sludge, lacquer, and harmful deposits. This enhances the cleaning of the system.
Improved Protection: The combination of refined mineral bases and additives offers proven protection for bronze and copper components.
Cutting Resistance: Special additives improve the viscosity index, ensuring stable viscosity despite temperature and time variations.
Compatibility: Compatible with a wide range of sealing elastomers, preventing lubricant leaks due to gasket deterioration.
Versatility: Suitable for many automatic transmissions from European and North American OEMs. Recommended for applications requiring Dexron®-II, Mercon®, as well as ZF and Voith transmissions.
Specifications
API MT-1/GL-5/GL-4
RECOMMENDATIONS
DEXRON® IID
MB 236.6
Ford Mercon®
TASA
ZF TE-ML 02F, 03D, 11A, 14A, 04D, 17C
VOITH H55.6335
| Test | Method | ATF 2 |
|---|---|---|
| Color | Visual | RED |
| Density @ 15°C | ASTM D 4052 | 0.855 |
| Viscosity @ 40°C | ASTM D 445 | 35.0 |
| Viscosity @ 100°C | ASTM D 445 | 6.5 |
| Viscosity Index | ASTM D 2270 | 150 |
| Flash point, °C | ASTM D 92 | 200 |
| Pour point, °C | ASTM D 97 | -39 |
| Brookfield Viscosity @ -40°C | DIN 51389 | 50,000 |
NOTE: The above values are "typical" for normal production tolerance and do NOT constitute a specification.
